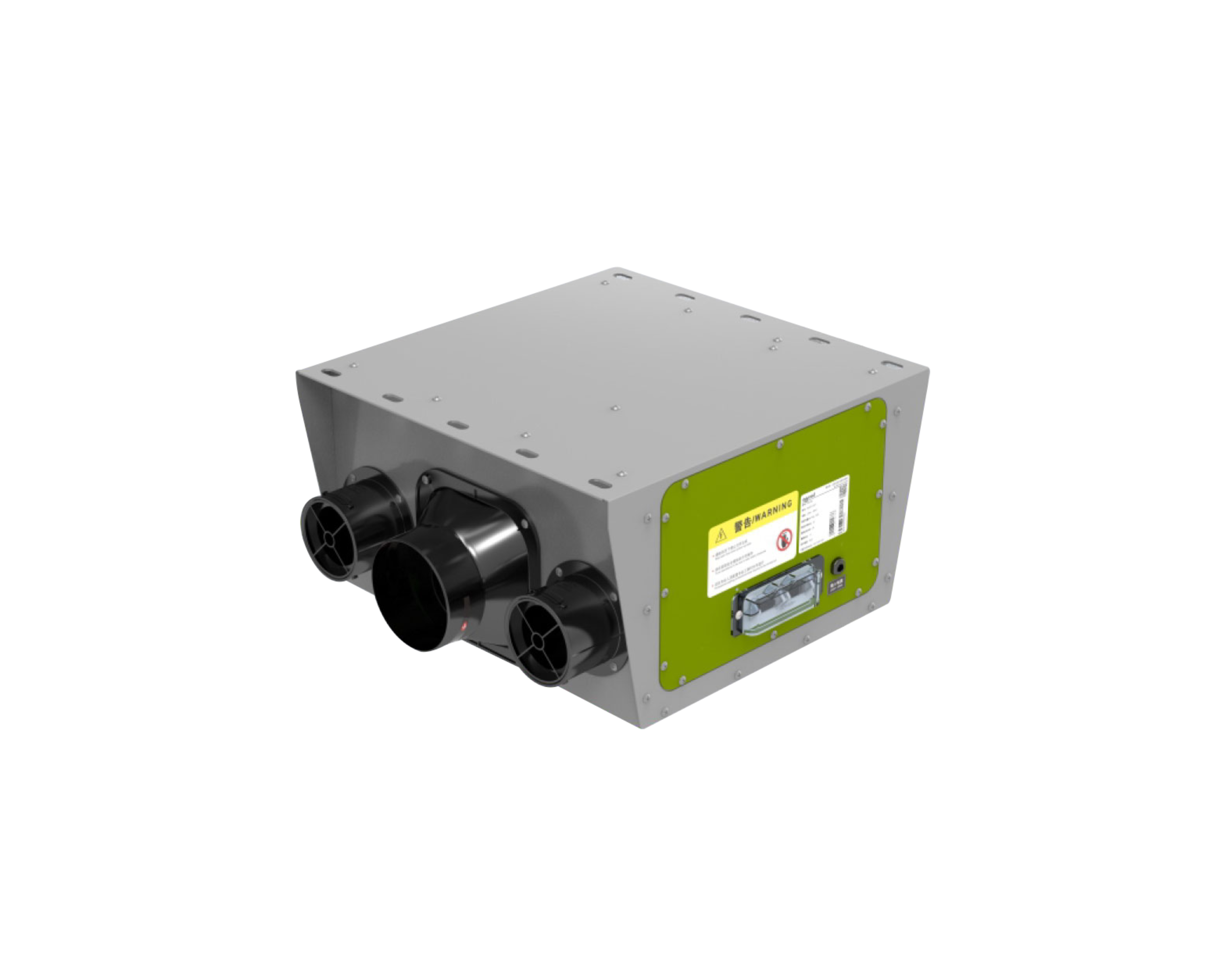

MENRED BR300 Ceiling-Mounted Smart Exhaust Ventilation System 50–300m³/h with PM2.5 and VOC Sensors

Brand Name MENRED
Model Number BR300
Type Ceiling-Mounted Smart Exhaust Ventilation System
Power Supply 220–240V~ 50/60Hz
Rated Airflow 50m³/h
Motor/Fan DC Fan
Product Dimensions 520 × 435 × 235mm

Features

Built-In PM2.5 and VOC Sensors
Continuously monitors indoor particulate and volatile organic compound levels.

Automatic Exhaust Operation
Automatically activates when PM2.5 or VOC concentrations exceed preset levels.

50–300m³/h Airflow Range
Adjusts from 50m³/h rated airflow to a maximum airflow of 300m³/h.

Energy-Efficient DC Fan
Consumes only 3W during rated operation, with a maximum power of 32W.

Low-Noise Operation
Operates at approximately 28dB(A) for comfort-focused indoor environments.

Centralized Ductwork Connection
Connects multiple exhaust points to one central ventilation unit.

Ceiling-Mounted Design
The compact unit installs above the ceiling without occupying indoor living space.

Benefits

Real-Time Air Quality Awareness
Built-in sensors allow the system to respond to changing indoor pollution levels.

Ventilation Only When Needed
Automatic operation removes polluted air without requiring constant manual control.

Fast Pollutant and Odor Removal
Variable airflow provides stronger exhaust performance when indoor air quality deteriorates.

Lower Energy Consumption
The efficient DC fan reduces electricity use during continuous low-speed operation.

Minimal Noise Disturbance
Quiet operation makes the system suitable for homes and other occupied spaces.

Multi-Room Exhaust Ventilation
One unit can remove stale air, odors and moisture from several connected areas.

More Usable Indoor Space
Concealed ceiling installation keeps the equipment out of sight.

Specification

Specification Details
Maximum Airflow 300m³/h
Maximum / Rated Power 32 / 3W
Built-In Sensors PM2.5 / VOC
Automatic Function Activates When PM2.5 or VOC Exceeds Preset Levels
Noise 28dB(A)
Operating Temperature -10°C to +50°C
Ductwork Connection Available
Recommended Applications Bathroom / Wardrobe / Pet Room / Entertainment Room
Weight 12kg

Documenls

Access documentation, including installation guides, owner manuals, specification sheets, and more, to help you get the most out of your product.

Access Product Documentation

Service

h with pm25 and voc sensors-3

BIM Design

h with pm25 and voc sensors-4

OEM/ODM

h with pm25 and voc sensors-5

Transport

h with pm25 and voc sensors-6

Quality guarantee

Contact Us
h with pm25 and voc sensors-7
MENRED BR300 Ceiling-Mounted Smart Exhaust Ventilation System 50–300m³/h with PM2.5 and VOC Sensors

MENRED BR300 Smart Unidirectional Ventilator

Smart Fresh Air & Indoor Air Quality Solution

The MENRED BR300 is a compact smart ventilation system designed for residential applications. Equipped with PM2.5 and VOC sensors, energy-saving DC fan technology and intelligent control, the BR300 delivers fresh air ventilation while improving indoor air quality. With quiet operation, flexible installation and automatic air detection, it is an ideal solution for bedrooms, bathrooms, apartments and retrofit projects.
