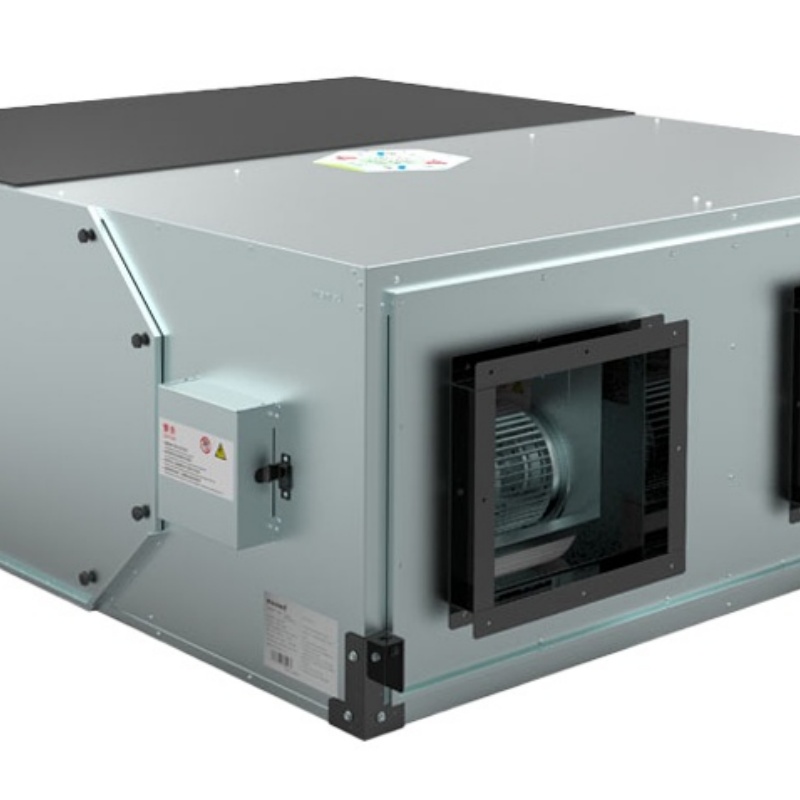

Products Dimension: |
1225 × 1285 × 320mm |
Brand Name: |
MENRED |
Model Number: |
NET.800 |
Power Supply: |
220-240V/50-60Hz |
Rated Airflow: |
800 / 700 / 600m³/h |
Motor/Fan: |
AC Fan |
Type: |
Commercial Energy Recovery Ventilator |
Up to 800m³/h Airflow
Provides three airflow levels of 800 / 700 / 600m³/h, allowing flexible ventilation according to different operating requirements.
High-Efficiency Heat Exchanger
Integrated heat recovery technology transfers energy between exhaust and incoming fresh air to improve ventilation energy efficiency.
G4 Filter Assembly
Equipped with a G4 filter to help reduce larger airborne particles and protect the ventilation system.
Reliable AC Fan
AC fan configuration provides stable airflow performance for commercial ventilation applications.
Ceiling-Mounted Design
Designed for concealed ceiling installation, making it suitable for centralized ducted ventilation systems.
Sturdy Multi-Layer Construction
A sturdy profile and multi-layer structure provide enhanced stability for commercial ventilation applications.
Wide Operating Temperature Range
Designed for outdoor operating temperatures from approximately -10°C to 50°C.
Ductwork Compatible
Supports ducted installation for centralized fresh air supply and exhaust distribution.
Efficient Commercial Ventilation
Up to 800m³/h airflow provides continuous fresh air exchange for commercial and larger indoor spaces.
Reduced Ventilation Energy Loss
Heat recovery helps retain part of the indoor heating or cooling energy that would otherwise be lost through exhaust air.
Flexible Airflow Adjustment
Three airflow levels allow the ventilation rate to be adapted to different occupancy and operating conditions.
Cleaner Incoming Air
G4 filtration helps reduce dust and larger airborne particles before outdoor air enters the indoor environment.
Stable Long-Term Operation
Sturdy construction and AC fan technology support reliable operation in centralized commercial ventilation systems.
Space-Saving Installation
Ceiling-mounted installation keeps the main unit concealed and helps preserve usable indoor floor space.
Easy Integration into HVAC Systems
Ductwork compatibility makes NET.800 suitable for integration into centralized ventilation layouts in commercial buildings.
|
Model |

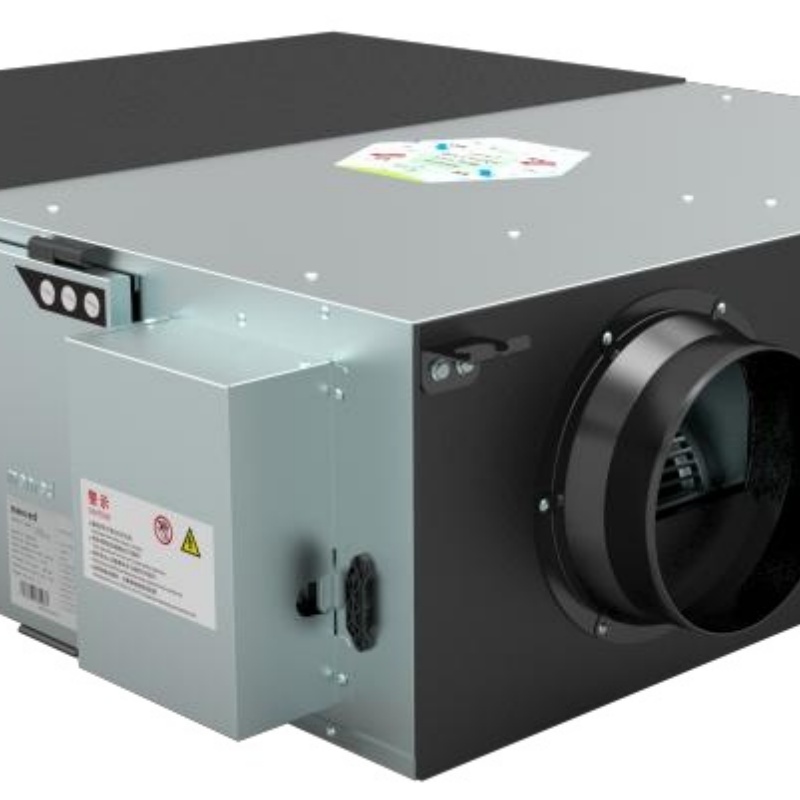

NET.500 |
NET.800 |
NET.1000 |
|
Power Supply |
220-240V~ 50/60Hz |
220-240V~ 50/60Hz |
220-240V~ 50/60Hz |
|
Airflow(m³/h) |
500/400/300 |
800/700/600 |
1,000/800/600 |
|
Power(W) |
405/290/205 |
615/510/415 |
540/505/490 |
|
Noise(dB(A)) |
48/44/37 |
52/49/45 |
54/52/45 |
|
Weight(Kgs) |
56 |
66 |
96 |
|
Dimension(mm) |
1,250*985*305 |
1,225*1,285*320 |
1,510*1,275*420 |
|
Model |

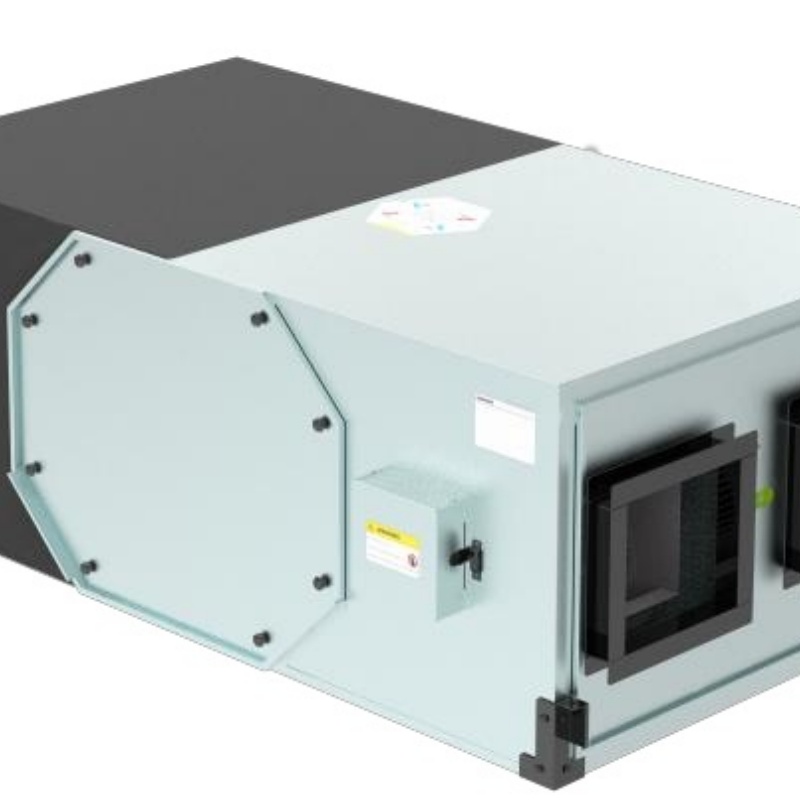

NET.2000 |
NET.3000 |
NET.5000 |
NET.10000 |
|
Power Supply |
220-240V~ 50/60Hz |
220-240V~ 50/60Hz |
380V~ 50/60Hz |
380V~ 50/60Hz |
|
Airflow(m³/h) |
2,000/1,600/1,200 |
3,000/2,300/1,700 |
5,000 |
10,000 |
|
Power(W) |
1,050/923/853 |
2,000/1,540/1,160 |
1,800 |
3,010 |
|
Noise(dB(A)) |
56/54/48 |
58/56/49 |
60 |
72 |
|
Weight(Kgs) |
161 |
220 |
532 |
623 |
|
Dimension(mm) |
1,900*1,070*690 |
1,900*1,570*690 |
2,300*1,710*1,085 |
2,800*1,715*1,235 |
