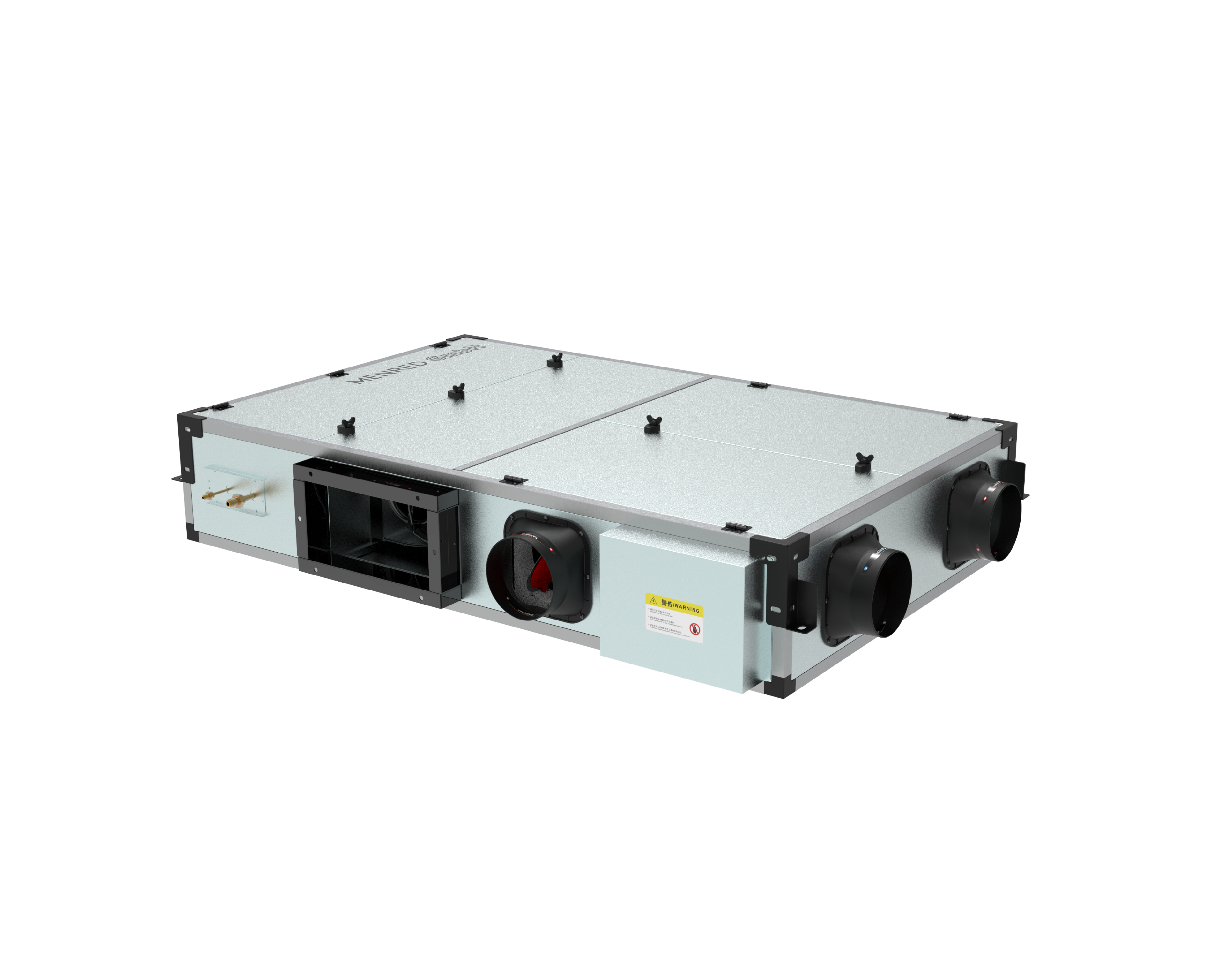

MENRED IEU70D300.1 Ceiling-Mounted Heat Pump Energy Recovery Ventilation System

7-in-1 Air Treatment System
Integrates fresh air, heat recovery, filtration, cooling, heating, dehumidification and recirculation.

High-Efficiency Heat Recovery
Delivers 78% heating efficiency and 65% cooling efficiency.

Hydronic Cooling and Heating Coil
Provides up to 40kW cooling and 30kW heating capacity.

Up to 384L/Day Dehumidification
Removes up to 16L/h of moisture for large spaces and humid climates.

G4 + HEPA Filtration
Uses Toray filter media for fresh air and indoor recirculation purification.

Large Commercial Airflow
Provides 400–1000m³/h fresh air and 2000–5000m³/h total supply airflow.

Built-In Air Quality Sensors
Monitors PM2.5, CO₂, temperature and humidity for intelligent operation.

Smart Tuya Control
Supports touch-screen control, Wi-Fi monitoring, scheduling and automatic mode adjustment.

Complete Indoor Climate Management
One unit manages ventilation, temperature, humidity and air cleanliness throughout the year.

Reduced HVAC Energy Load
Heat recovery lowers the cooling and heating demand placed on the hydronic system.

Stable Indoor Temperature
Integrated water coils provide centralized cooling and heating for large spaces.

Effective Humidity Control
High dehumidification capacity helps prevent dampness, mould and condensation.

Cleaner Indoor Air
Fresh air and recirculation filtration reduce PM2.5 and other airborne particles.

Reliable Large-Space Coverage
Multiple airflow options support commercial buildings and spaces up to approximately 2000m².

Demand-Controlled Operation
Real-time sensing allows the system to respond automatically to indoor air conditions.

Easier Centralized Management
Remote control and automatic functions reduce manual operation and maintenance workload.
