Brand Name |
MENRED |
Model Number |
W5 |
Type |
Floor-Standing Energy Recovery Ventilator |
Power Supply |
220-240V~ 50/60Hz |
Rated Airflow |
350m³/h |
Motor/Fan |
Energy-Saving EC Fan |
Product Dimensions |
1360 × 555 × 505mm |
High-Airflow Floor-Standing Design
Provides up to 500m³/h airflow with a compact floor-standing structure, suitable for large residential spaces and high ventilation requirements.
High-Efficiency Heat Recovery
Equipped with an advanced heat exchanger achieving up to 90.3% heat recovery efficiency, reducing energy loss during ventilation.
Cold-Climate Protection System
Integrated frost protection and preheating technology ensure stable operation in low-temperature environments.
Energy-Saving EC Fan Technology
High-efficiency EC fans deliver powerful airflow with lower energy consumption and quiet operation.
Multi-Stage Air Filtration
G4 + HEPA filtration helps remove dust, pollen and fine particles, providing cleaner indoor air.
Reliable Fresh Air Performance
Maintains continuous fresh air supply and balanced ventilation for villas, apartments and residential projects.
Lower Energy Consumption
Recovers heating and cooling energy from exhaust air, helping reduce long-term operating costs.
Ideal for Cold Regions
Provides stable ventilation performance in winter conditions with enhanced frost protection.
Flexible Project Installation
The floor-standing design simplifies installation and maintenance for different residential applications.
Healthier Indoor Living Environment
Advanced filtration technology improves indoor air quality and enhances occupant comfort.
| Specification | Details |
|---|---|
| Product Dimension: | 1360 × 555 × 505mm |
| Brand Name: | MENRED |
| Model Number: | W5 |
| Power Supply: | 220–240V~ 50/60Hz |
| Rated Airflow: | 350m³/h |
| Max Airflow: | 500m³/h |
| Rated Power: | 135W |
| Supply Fan Static Pressure: | 100Pa |
| Exhaust Fan Static Pressure: | 50Pa |
| Filter Efficiency: | 98% |
| Heating Efficiency: | 90.3% |
| Cooling Efficiency: | 72% |
| Motor/Fan: | EC Fan |
| Filter: | G4 + HEPA |
| Noise: | 39dB(A) |
| Weight: | 75kg |
| Applicable Area: | Up to 200m² |
| Outdoor Temperature: | -40°C to 50°C |
| Bypass Damper: | Yes |
| Built-in Preheater: | Yes |
| Condensate Drain Pan: | Yes |
| Type: | Preheating Heat Recovery Ventilator |
Access documentation, including installation guides, owner manuals, specification sheets, and more, to help you get the most out of your product.
Access Product Documentation

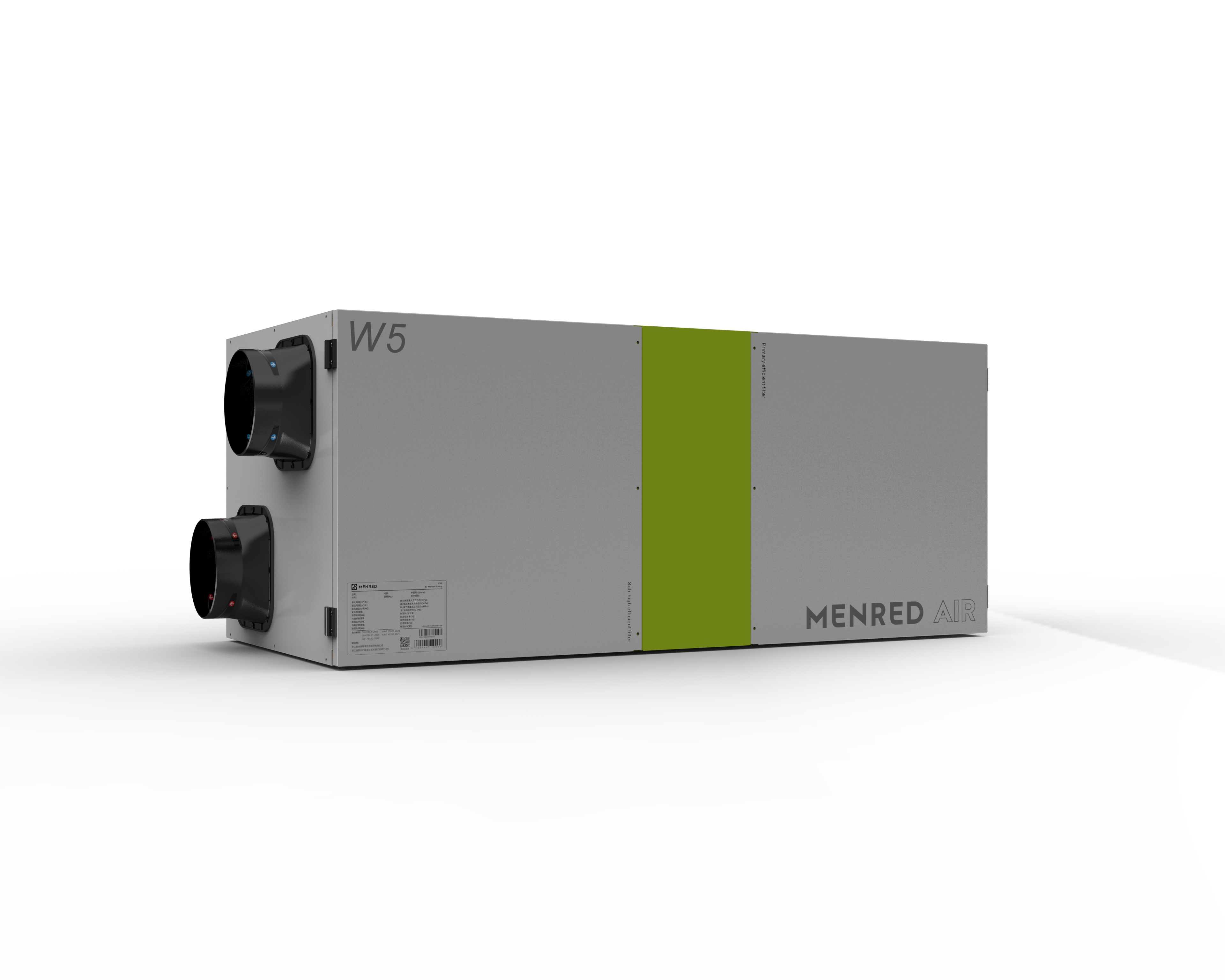

The MENRED W5 is a high-efficiency floor-standing HRV system designed for modern residential applications. Featuring advanced heat recovery technology, energy-saving EC fans and multi-stage air filtration, the W5 delivers powerful fresh air performance while reducing energy consumption. With high airflow capacity, reliable cold-climate operation and flexible installation, the W5 is ideal for villas, large apartments and residential projects requiring efficient ventilation solutions.
