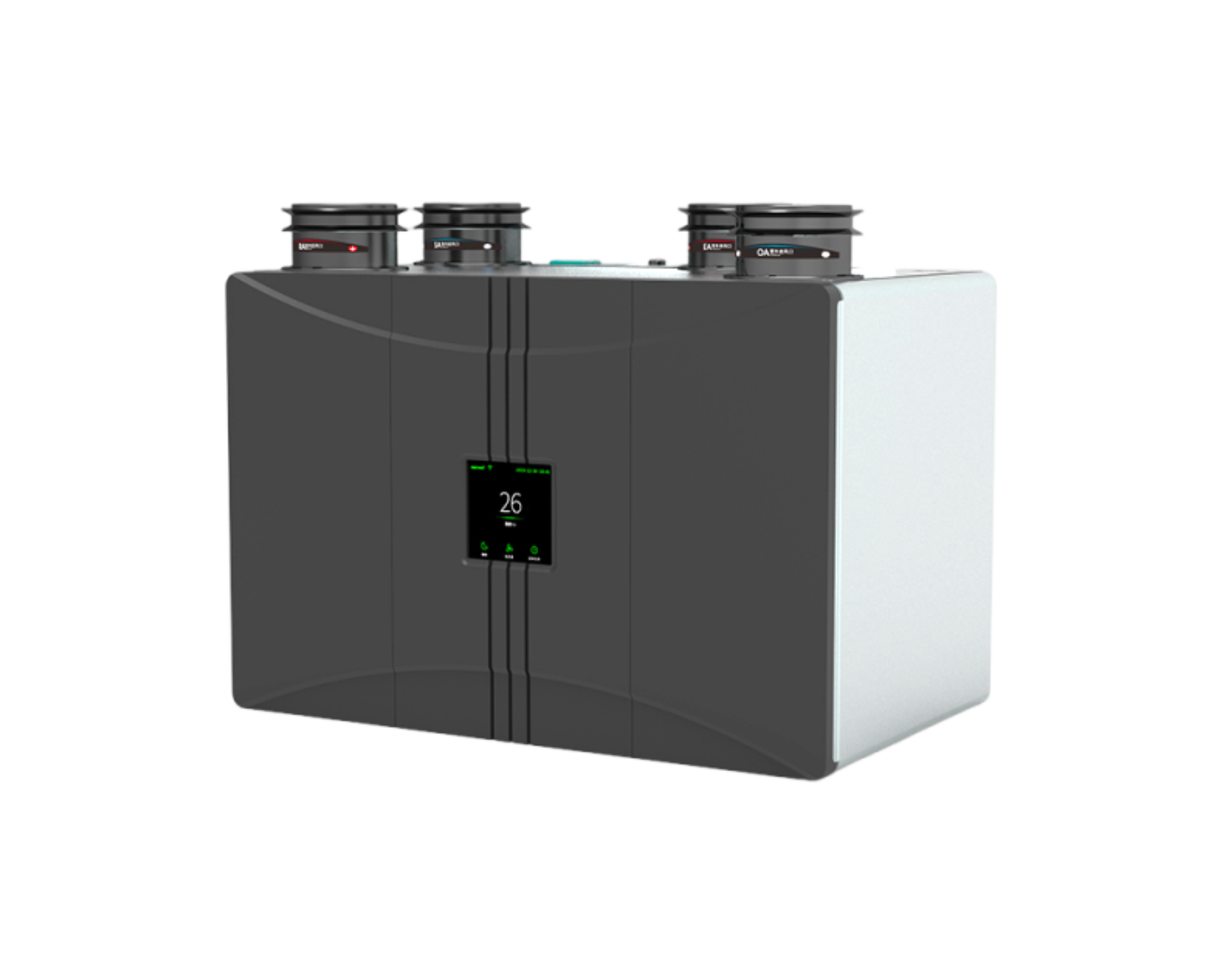

MENRED G3 Wall-Mounted ERV 210m³/h with One-Piece EPP Structure, HEPA Filtration and Built-In Air Sensor

Brand Name MENRED
Model Number G3
Type Wall-Mounted Full Heat Recovery Ventilator
Power Supply 220–240V~ 50/60Hz
Rated Airflow 210m³/h
Motor/Fan EC Fan
Product Dimensions 600 × 460 × 365mm

Features

One-Piece EPP Structure
The integrated EPP body provides thermal insulation and a lightweight, durable internal structure.

High-Efficiency Heat Recovery
Delivers 73% heating efficiency and 65.5% cooling efficiency.

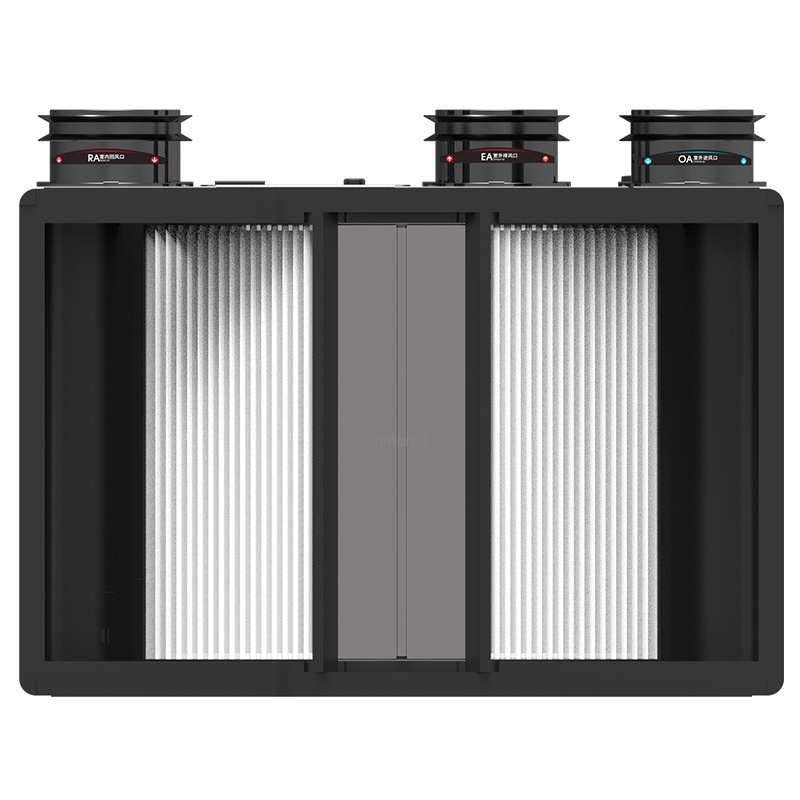

Toray HEPA Filtration
Captures PM2.5, dust and fine airborne particles before fresh air enters the room.

97% PM2.5 Filtration
Provides up to 97% PM2.5 filtration efficiency for cleaner incoming air.

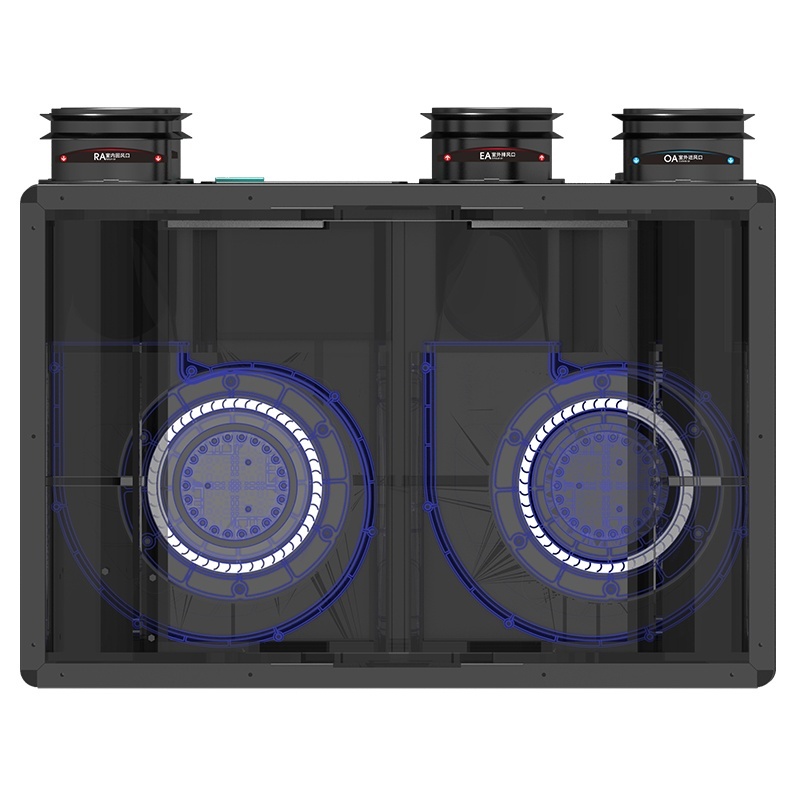

Energy-Efficient EC Fan
Provides stable airflow with a rated power of 98W.

210m³/h Rated Airflow
Delivers up to 320m³/h maximum airflow for spaces up to approximately 100m².

Built-In Air Sensor
Monitors indoor air conditions to support responsive ventilation control.

Wall-Mounted Ducted Design
Supports wall installation and ductwork connection for flexible air distribution.

Benefits

Reliable and Efficient Operation
The insulated EPP structure helps reduce heat loss and supports stable performance.

Improved Year-Round Comfort
Energy recovery helps maintain a more stable indoor temperature.

Cleaner Indoor Air
HEPA filtration helps prevent outdoor particles from entering occupied spaces.

Healthier Fresh Air Supply
High PM2.5 filtration supports better indoor air quality.

Reduced Energy Consumption
The efficient EC fan supports continuous ventilation with lower power use.

Effective Residential Ventilation
Continuously supplies fresh air while removing stale air from medium-sized homes.

Smarter Air Management
The built-in sensor helps the system respond to changing indoor air conditions.

Flexible Installation
Wall mounting and ductwork compatibility support different residential layouts.

Specifications

Specification Details
Maximum Airflow 320m³/h
Maximum / Rated Power 210 / 98W
Heating Efficiency 73%
Cooling Efficiency 65.5%
Fresh Air Ratio 96%
Filter HEPA
Filter Media Toray
PM2.5 Filtration 97%
Noise 39dB(A)
Applicable Area Up to Approx. 100m²
Operating Temperature -20°C to +50°C
Internal Structure One-Piece EPP
Air Sensor Built-In
Optional Accessory Touch-Screen Controller
Ductwork Connection Available
Weight 19kg

Documenls

Access documentation, including installation guides, owner manuals, specification sheets, and more, to help you get the most out of your product.

Access Product Documentation

Service

h with one piece epp structure hepa filtration and built in air sensor-3

BIM Design

h with one piece epp structure hepa filtration and built in air sensor-4

OEM/ODM

h with one piece epp structure hepa filtration and built in air sensor-5

Transport

h with one piece epp structure hepa filtration and built in air sensor-6

Quality guarantee

Contact Us
h with one piece epp structure hepa filtration and built in air sensor-7
MENRED G3 Wall-Mounted ERV 210m³/h with One-Piece EPP Structure, HEPA Filtration and Built-In Air Sensor

MENRED G3 Wall-Mounted ERV

Compact Heat Recovery with Built-In Air Monitoring

The MENRED G3 is a wall-mounted full heat recovery ventilator designed for residential spaces up to approximately 100m². Featuring 210m³/h rated airflow, a one-piece EPP structure, Toray HEPA filtration and a built-in air sensor, it continuously supplies filtered fresh air while removing stale indoor air. With up to 73% heating efficiency, an energy-efficient EC fan and operation down to -20°C, the G3 provides intelligent and reliable ventilation throughout the year.
