MENRED FO500-2500 Ceiling-Mounted HP-ERV Fresh Air Air Conditioner 500-2500m³/h ebmpapst DC Fan G4+HEPA Integrated Cooling Heating Dehumidification Heat Recovery Ventilator

Different Names of Product: Ceiling-Mounted HP-ERV Fresh Air Air Conditioner, All-in-one Heat Pump Energy Recovery Ventilator, Duct-type Integrated Cooling Heating Dehumidification HRV, Ceiling Concealed Fresh Air Heat Pump Unit, Multi-function Commercial & Household Full Air Handling Unit

Main Application: All-season integrated indoor air treatment for large villas, luxury apartments, high-end offices, boutique homestays, retail shops and light commercial spaces. It integrates fresh air exchange, total heat recovery, dual-stage air purification, independent refrigeration, constant temperature heating and heavy-duty reheating dehumidification. Slim ceiling concealed installation saves indoor usable space, matched with dedicated outdoor heat pump condenser, ideal for new house pre-buried pipeline construction and large-space HVAC ventilation projects in humid coastal and rainy regions.

Core Specification: Model series FO500-2500, power supply 220V~50Hz (FO500/800), 380V~50Hz (FO1500/2500); four airflow options: 500/800/1500/2500m³/h, applicable area up to 2000㎡, Germany ebmpapst DC fan, Japan Toray G4+HEPA dual filtration system, built-in integrated heat pump coil, max daily dehumidification capacity up to 216L/D, stable working temperature range -10℃~50℃, optional wall touch screen controller and air quality sensor, complete matched ductwork available.

Single Model Core Parameters

FO500: Rated power 215W, cooling efficiency 76%, heating efficiency 67.5%, cooling capacity 9.5kW, heating capacity 7.2kW, dehumidification 1.7L/h, PM2.5 filtration 98%, noise 46dB(A), weight 120kg

FO800: Rated power 300W, cooling efficiency 73%, heating efficiency 67%, cooling capacity 15kW, heating capacity 12kW, dehumidification 3L/h, PM2.5 filtration 98%, noise 46dB(A), weight 130kg

FO1500: Rated power 600W, cooling efficiency 71%, heating efficiency 66%, cooling capacity 28kW, heating capacity 21kW, dehumidification 5L/h, PM2.5 filtration 96%, noise 48dB(A), weight 495kg

FO2500: Rated power 800W, cooling efficiency 70%, heating efficiency 65%, cooling capacity 47kW, heating capacity 36kW, dehumidification 9L/h, PM2.5 filtration 96%, noise 48dB(A), weight 495kgUniversal parameter: Water flow rate 1m³/h for all models

MENRED FO500-2500 ceiling-mounted HP-ERV Fresh Air Air Conditioner is an integrated heat pump full-air ventilation unit designed for mid-to-high-end residential and light commercial HVAC projects. Different from ordinary single-function heat recovery ventilators, this series is equipped with matched independent outdoor heat pump condenser, combining six core functions: bidirectional fresh air heat recovery, G4+HEPA two-stage high-efficiency purification, active refrigeration, constant temperature heating, reheating constant humidity dehumidification and intelligent air quality monitoring. One unit solves six major indoor air pain points: indoor hypoxia & stuffiness, formaldehyde & haze pollution, summer high temperature, winter cold, seasonal damp mildew and real-time air monitoring demands.

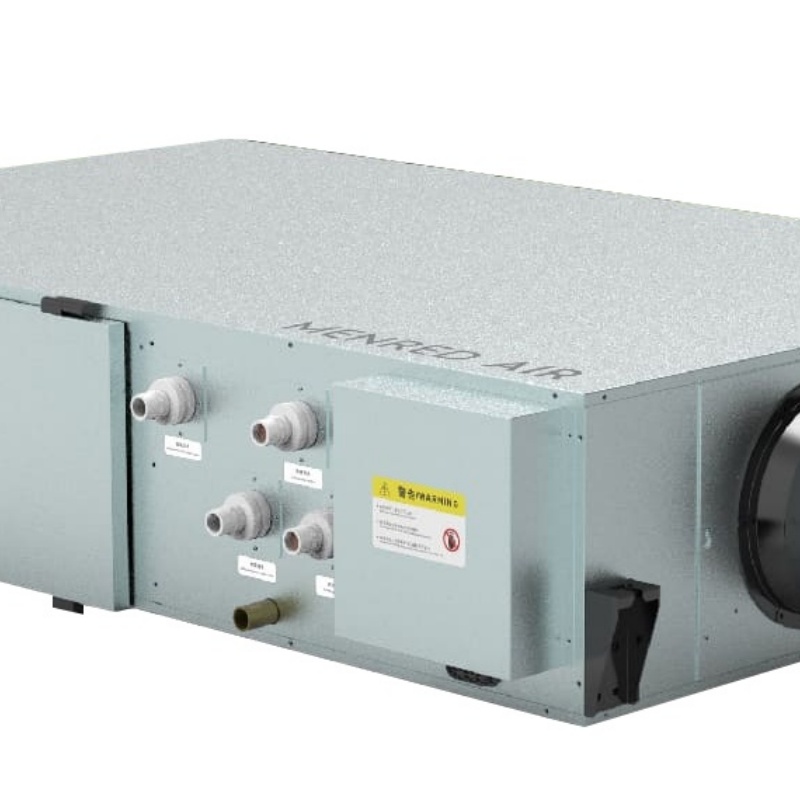

The indoor main unit adopts slim ceiling concealed layout, compact body reduces ceiling height construction requirement, completely hidden above ceiling without occupying indoor usable space, perfectly matching new house pipeline pre-buried construction and will not damage finished interior decoration. Equipped with original Germany ebmpapst DC fan as core air supply component, the fan features low power consumption, stable large static pressure airflow output, operating noise controlled at 46~48dB(A) to avoid sound interference to family rest and office working environment. The built-in high-efficiency total heat exchanger fully recycles temperature and humidity energy from exhausted indoor stale air, with cooling recovery efficiency 70~76% and heating recovery efficiency 65~67.5%, greatly reduces the heat pump’s refrigeration and heating load and cuts long-term household & commercial electricity consumption.

For air purification performance, FO series adopts imported Japan Toray filter materials to build G4 primary filter + HEPA high-efficiency composite purification structure. Small models FO500/800 reach 98% PM2.5 interception efficiency, large models FO1500/2500 reach 96%, effectively intercept outdoor haze, pollen, industrial floating dust and indoor decoration residual formaldehyde, benzene and other volatile harmful substances, continuously supplying clean purified fresh oxygen indoors all year round. The built-in high-efficiency dehumidification module cooperates with heat pump cooling coil to realize reheating constant humidity dehumidification, maximum daily dehumidification capacity up to 216L/D, specially developed for coastal humid cities and rainy seasons to remove excess indoor moisture, prevent wall mildew, wooden furniture deformation and mold breeding, maintain a comfortable constant humidity living and working environment.

The integrated heat pump system is the core highlight of this unit, matched with dedicated outdoor condenser to realize independent refrigeration and heating circulation. Four specifications of cooling & heating capacity cover small villas to large commercial spaces: cooling capacity ranges from 9.5kW to 47kW, heating capacity ranges from 7.2kW to 36kW, realizing independent indoor constant temperature adjustment while renewing fresh air. Power supply is divided into 220V single-phase for small household models and 380V three-phase industrial power for large commercial models, flexible matching different building power supply conditions. All models adopt unified 1m³/h water flow rate for stable heat exchange of the internal coil without insufficient heat exchange or water flow blockage problems.

Powered by standard household / industrial power supply, four airflow specifications from 500m³/h to 2500m³/h cover applicable areas up to 2000 square meters, widely suitable for large villas, duplex apartments, high-end offices, boutique homestays and chain retail store comprehensive air treatment projects. The product reserves wiring ports for optional intelligent accessories: wall-mounted touch screen controller and high-precision air quality sensor. Users can realize real-time monitoring of indoor PM2.5, CO₂, temperature and humidity, automatic fan speed adjustment and mode switching, and support Tuya WIFI APP remote monitoring and timing operation for unattended intelligent ventilation & temperature control. The compact slim body is lightweight for convenient transportation and ceiling hoisting installation, and can be matched with complete ductwork to realize multi-room centralized fresh air supply, cooling, heating and dehumidification.

All MENRED FO series heat pump fresh air air conditioners pass strict multi-process continuous aging tests and international CE,UKCA safety certifications. Stable monthly production capacity supports OEM & ODM customized services including customized shell appearance, control logic and supporting pipeline accessories, serving global high-end decoration engineering companies, real estate developers and fresh air system distributors.

· High-end Large Residential Buildings: Luxury villas, large duplex apartments and newly renovated high-end houses. Ceiling concealed layout does not occupy indoor space, integrated fresh air purification, refrigeration, heating and heavy dehumidification to create all-season constant temperature, constant humidity and oxygen-rich healthy living environment.

· Commercial & Hospitality Spaces: Boutique homestays, high-end offices, chain retail shops and cafes. Multi-function integrated design reduces separate procurement costs of ventilator, air conditioner and dehumidifier; large airflow quickly adjusts indoor temperature and humidity to improve customer and staff comfort.

· Coastal & High-humidity Region Engineering Projects: Professional heat pump integrated dehumidification fresh air equipment for decoration companies in rainy and coastal humid areas, solving comprehensive air problems of fresh air renewal, temperature regulation and mildew prevention for large indoor spaces.

· Public Light Commercial Premises: Small exhibition halls, training classrooms and beauty salons. Slim concealed installation fits various ceiling construction schemes, high-efficiency dual-stage filtration eliminates indoor crowd odor and outdoor haze pollutants.

· Integrated HP-ERV 6-in-1 Multi-function Design: Combine fresh air heat recovery, dual-stage purification, independent refrigeration, constant temperature heating, 216L large dehumidification and intelligent air quality monitoring, one machine meets all-year-round indoor air demands, save separate equipment procurement and pipeline installation costs.

· Slim Ceiling Concealed Structure: Compact body design with low ceiling height requirement, suitable for new house pre-buried pipeline construction without damaging finished interior decoration.

· Germany ebmpapst Original DC Fan: Stable low-power operation, low running noise between 46~48dB(A), long service life and low later maintenance failure rate.

· Japan Toray Dual-stage High-efficiency Filtration System: G4+HEPA composite filter fully intercepts haze, pollen, formaldehyde and various indoor & outdoor air pollutants, small models reach up to 98% PM2.5 interception efficiency.

· High-efficiency Total Heat Recovery Core: Cooling recovery efficiency up to 76%, heating recovery efficiency up to 67.5%, recycle waste air temperature and humidity energy to reduce heat pump operating load and cut annual electricity expenditure greatly.

· 220V/380V Dual Power Supply Options: Small household models adopt 220V single-phase power; large commercial models adopt 380V three-phase industrial power, flexible matching different building power supply conditions.

· Four Complete Airflow Specifications (500/800/1500/2500m³/h): Flexible selection for small villas to large commercial spaces within 2000㎡, matching different residential and commercial area ventilation demands.

· Optional Full Intelligent Control System: Wall touch screen + Tuya WIFI APP remote operation, support automatic mode switching, timing operation and remote fault reminder for unattended intelligent air management.

· Wide Extreme Temperature Adaptability: Stable heat pump and ventilation operation under -10℃~50℃, adapt to cold northern winter and high-temperature humid southern coastal climate.

· Complete International Certifications & Customization Support: CE/UKCA certified, stable monthly supply capacity accepts OEM customized appearance, control program and matching accessories for global high-end engineering bulk purchasers.
