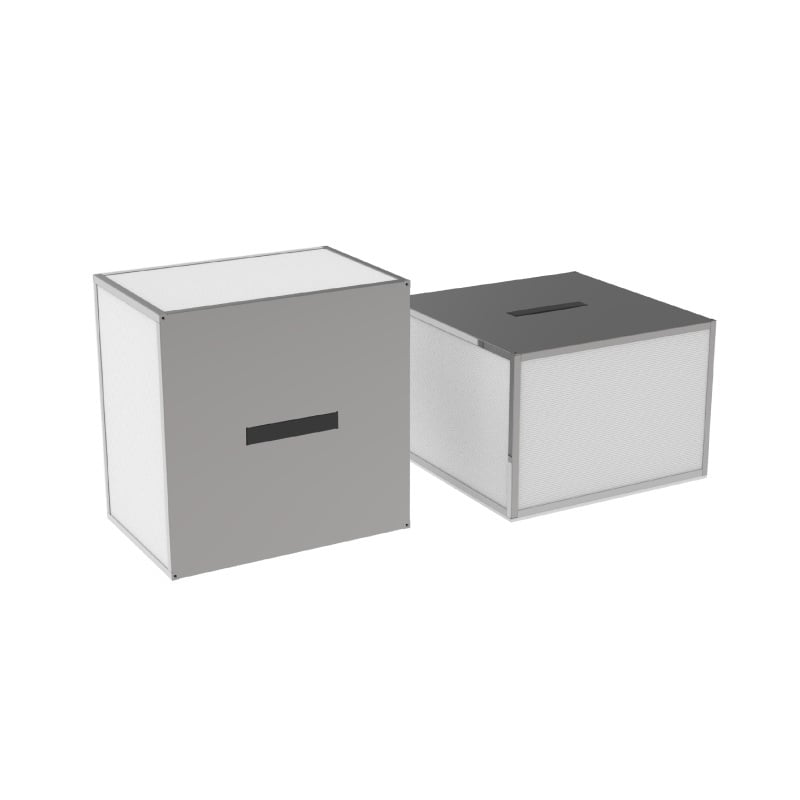

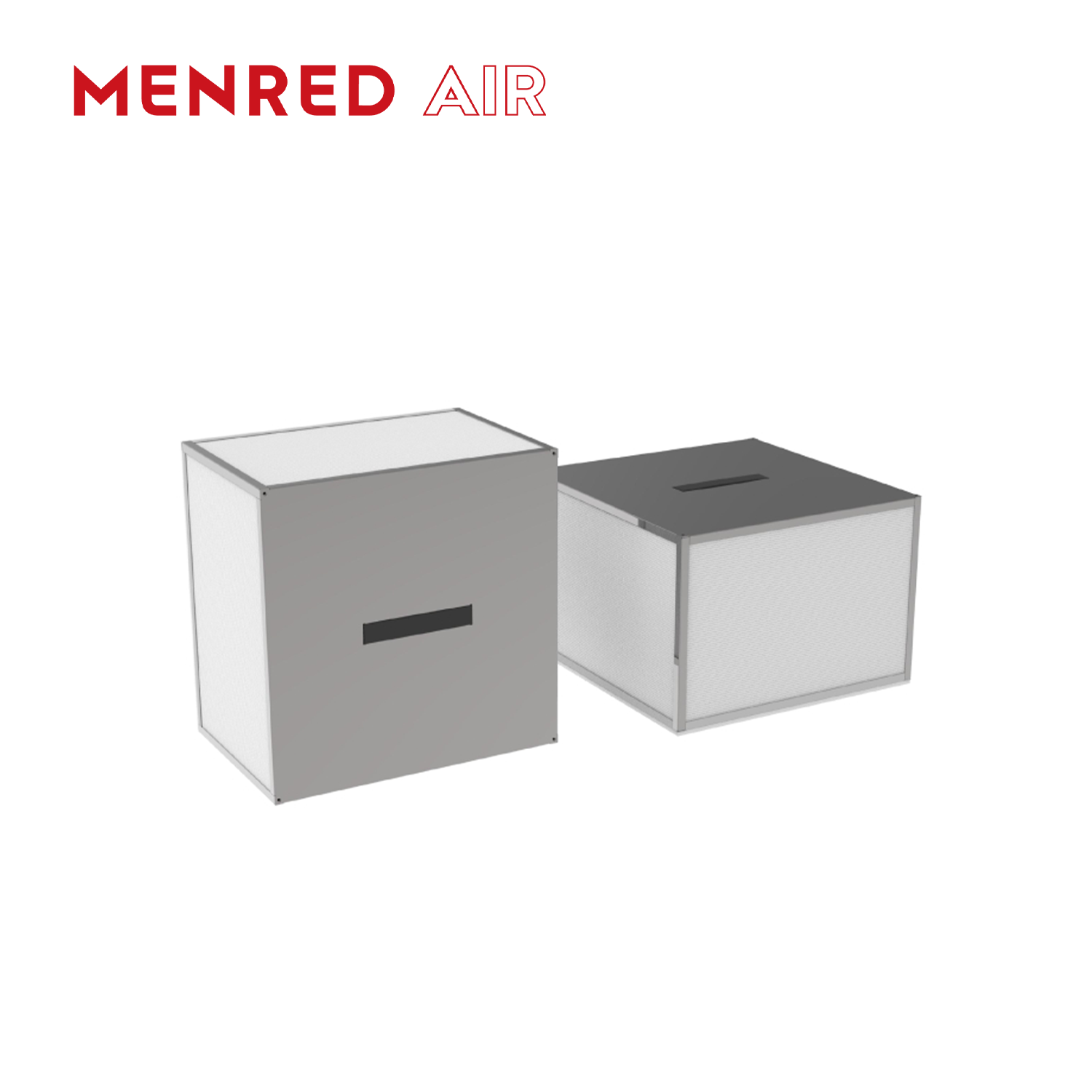

High Efficient Crossflow Nanoporous Membrane Heat Exchanger Core XFE-332SC

· Different Names of Product: Crossflow Heat Recovery Exchanger Core, Nanoporous Membrane ERV Cross-flow Heat Exchange Core, Washable Single-plane Crossflow Energy Recovery Ventilator Core

· Main Application: Standard energy recovery heat exchange core matched with household wall-mounted & ceiling-mounted ERV fresh air ventilators. Adopts mature single-plane crossflow heat exchange channel, high-performance nanoporous moisture-permeable membrane, washable and reusable structure, 99% antiviral & antibacterial function, suitable for small and medium-sized residential fresh air systems. OEM customization of core total height is supported.

Core Structure Composition: ① ABS Outer Cover ② Nanoporous Moisture-permeable Membrane ③ ABS Support Frame ④ SUS Stainless Steel Outer Protective Shell

MENRED XFE-332SC crossflow heat exchanger core is a cost-effective energy recovery element for small household ERV fresh air ventilators, adopting classic single-plane crossflow heat exchange structure. Indoor exhaust air and outdoor fresh air cross in single-layer channels to exchange temperature and humidity enthalpy, effectively recovering cooling and heating energy to reduce household air conditioner and heater power consumption.

The heat exchange medium uses high-quality nanoporous moisture-permeable membrane with outstanding thermal conductivity, air tightness, oxidation resistance and mildew-proof properties. The material passes professional microbial testing, reaching 99% antiviral rate and 99% antibacterial rate, inhibiting mold, bacteria and virus reproduction inside fresh air ducts, protecting indoor breathing air health.

This crossflow core supports full water washing and repeated use. Users can remove the core and flush with clean water regularly without buying expensive replacement cores, cutting long-term maintenance costs of fresh air equipment. The integrated ABS frame plus SUS stainless steel outer shell brings strong structural rigidity, zero internal air leakage, and stable sealing performance under long-term wind pressure operation.

The compact 332*332mm size is specially designed for small and medium household ERV ventilators, with a height of 230mm and membrane thickness of 2.35mm. It features frost resistance and moisture resistance, stable heat exchange performance whether in cold northern winters or humid southern coastal environments. Custom OEM service is available: the total height of the core can be customized according to the customer’s ventilator housing size.

The crossflow core has obtained CNAS laboratory authoritative certification, and complies with CE and RoHS environmental safety standards. Stable mass production capacity supports private brand logo printing, neutral export packaging and size customization, serving global fresh air ventilator manufacturers, HVAC decoration engineering contractors and residential fresh air system distributors.

· Household Small Fresh Air Ventilator Matching Parts: Wall-mounted / ceiling-mounted mini ERV fresh air machines for apartments and small villas, as standard factory-installed heat exchange core.

· Post-sale Maintenance Replacement Accessories: Washable reusable crossflow core for maintenance and renovation of installed household fresh air systems.

· Fresh Air Equipment OEM Supporting Components: Cost-effective crossflow heat exchange core for small ERV ventilator manufacturers.

· Light Commercial Mini Ventilation Projects: Small shops, single offices and beauty salon small fresh air ventilation equipment.

· Mature Single-plane Crossflow Channel Structure: Stable heat exchange performance, cost-effective for mass household equipment matching.

· Functional Nanoporous Membrane: Simultaneous recovery of temperature and humidity enthalpy, with dual antiviral and antibacterial health protection functions.

· Washable Reusable Design: Avoid frequent core replacement, greatly reduce users’ long-term use cost.

· Rigid ABS + SUS Integrated Frame: Excellent air tightness, no internal air leakage, not easy to deform after long-term operation.

· Compact Standard Size: Perfectly matched with mainstream small household ERV ventilator housings on the market.

· Wide Climate Adaptability: Frost-proof and moisture-proof material, suitable for all domestic climate zones.

· Flexible OEM Customization Service: Support customized core total height and printed brand logo.

· Complete Authoritative Certifications: CNAS certification and full set of safety & microbial test reports, convenient for overseas market export.
