| Product Dimension: | 630 × 380 × 200mm |
| Brand Name: | MENRED |
| Model Number: | NEW5.350A |
| Power Supply: | 220V~ 50Hz |
| Rated Airflow: | 350m³/h |
| Motor/Fan: | DC Fan |
| Type: | Single-Flow Fresh Air Ventilator |
350m³/h Fresh Air Supply
Provides a rated airflow of 350m³/h for continuous fresh air ventilation.
Single-Flow Ventilation
Designed as a dedicated fresh air supply unit for bringing filtered outdoor air into indoor spaces.

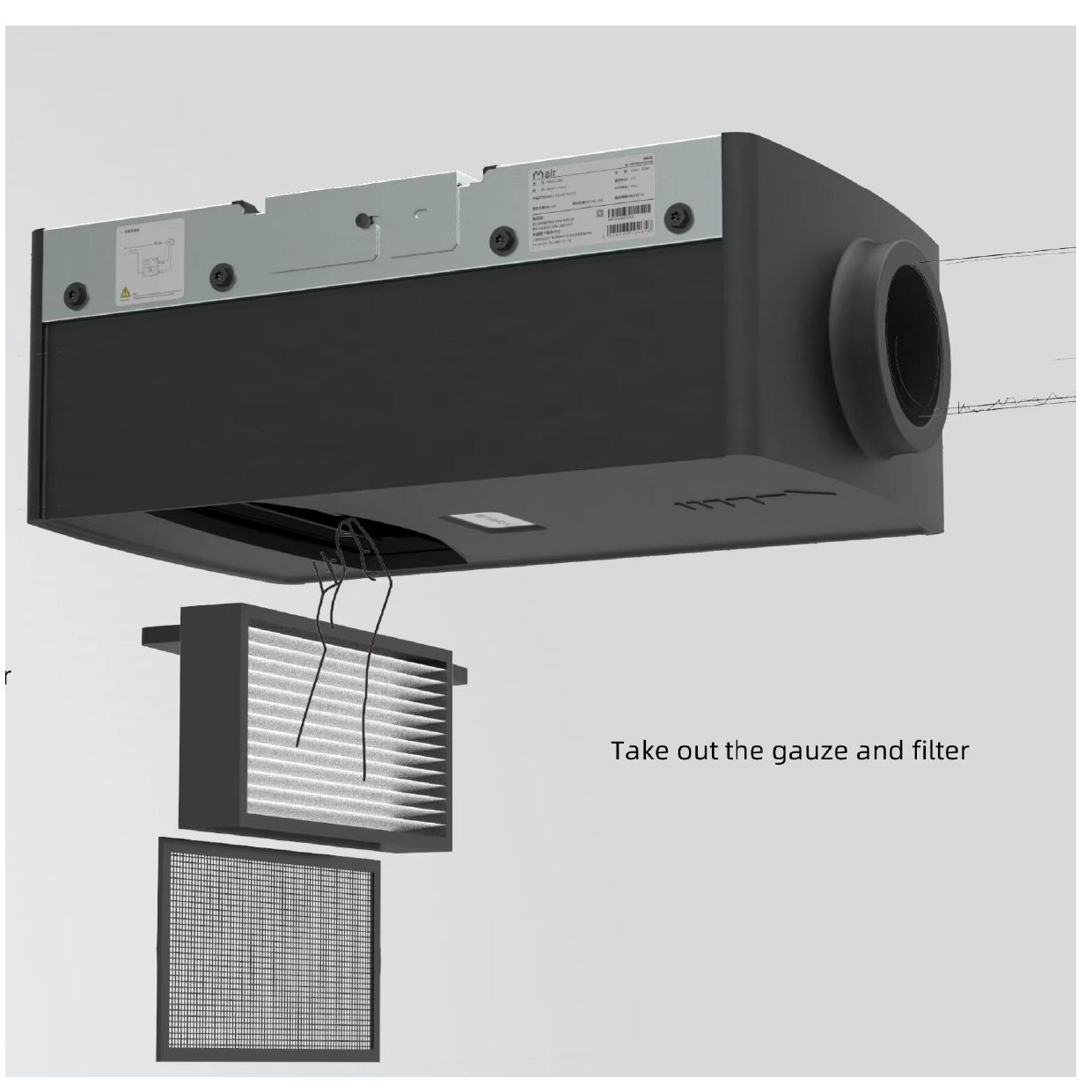

HEPA Filtration
Equipped with HEPA filtration to help reduce airborne particles from incoming fresh air.
Energy-Saving DC Fan
Uses a DC fan with a rated power of 95W for efficient airflow operation.
Low-Noise Operation
Operates at approximately 37.8dB(A) for a more comfortable indoor environment.
One-Piece EPS Structure
One-piece EPS construction provides a lightweight and integrated internal structure.
Optional 2-Speed Switch
Supports an optional two-speed switch for flexible airflow control.
Ceiling-Mounted Design
Concealed ceiling installation helps save indoor floor space and integrate with ductwork systems.
Continuous Fresh Air Supply
Delivers filtered outdoor air continuously to improve indoor air circulation.
Cleaner Incoming Air
HEPA filtration helps reduce airborne particles before fresh air enters occupied spaces.
Energy-Efficient Operation
DC fan technology and 95W rated power support efficient daily ventilation.
Quiet Indoor Environment
Low operating noise helps make the unit suitable for residential and comfort-focused indoor spaces.
Flexible Airflow Control
Optional two-speed switching allows users to adjust ventilation according to actual demand.
Space-Saving Installation
Ceiling-mounted construction keeps the unit concealed and preserves usable indoor space.
Suitable for Centralized Fresh Air Systems
With 350m³/h airflow and ductwork compatibility, NEW5.350A can be integrated into centralized fresh air distribution layouts.
| Specification | Details |
|---|---|
| Product Dimension: | 630 × 380 × 200mm |
| Brand Name: | MENRED |
| Model Number: | NEW5.350A |
| Power Supply: | 220V~ 50Hz |
| Rated Airflow: | 350m³/h |
| Rated Power: | 95W |
| Motor/Fan: | DC Fan |
| Filter: | HEPA |
| Noise: | 37.8dB(A) |
| Weight: | 6.5kg |
| Applicable Area: | Up to 200m² |
| Installation: | Ceiling-Mounted |
| Type: | Single-Flow Fresh Air Ventilator |
Access documentation, including installation guides, owner manuals, specification sheets, and more, to help you get the most out of your product.
Access Product Documentation

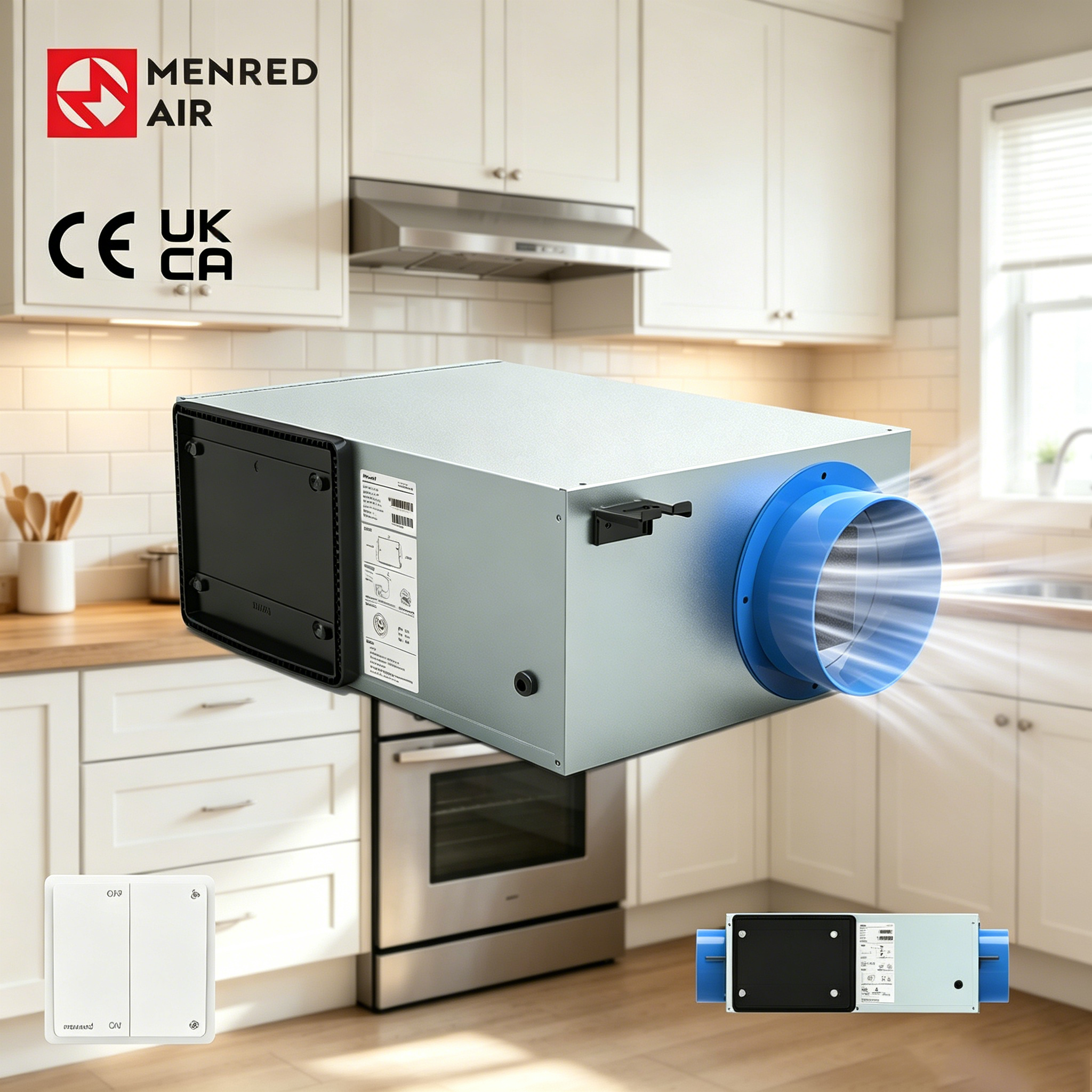

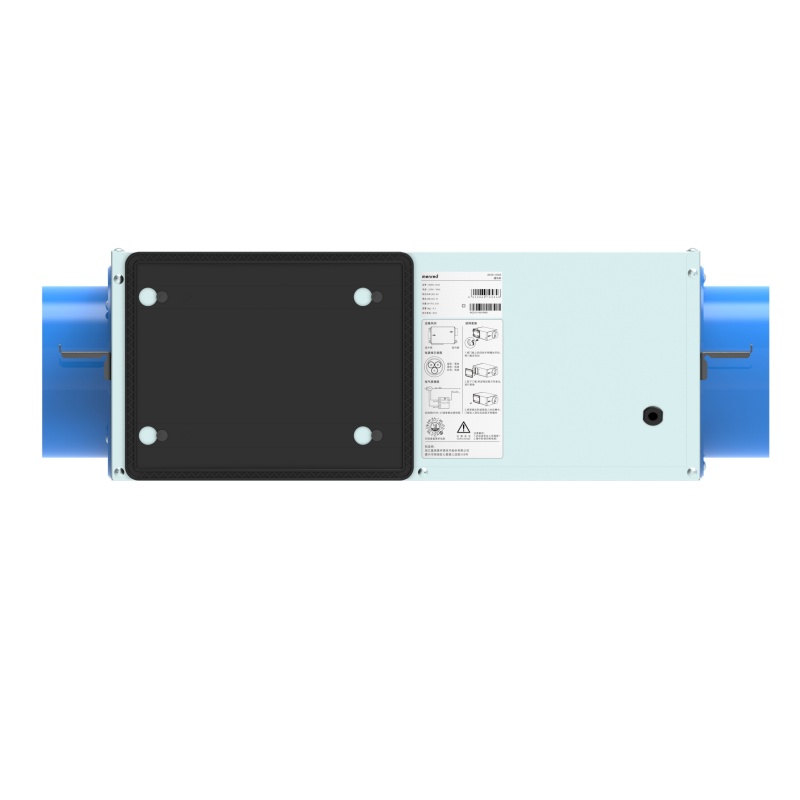

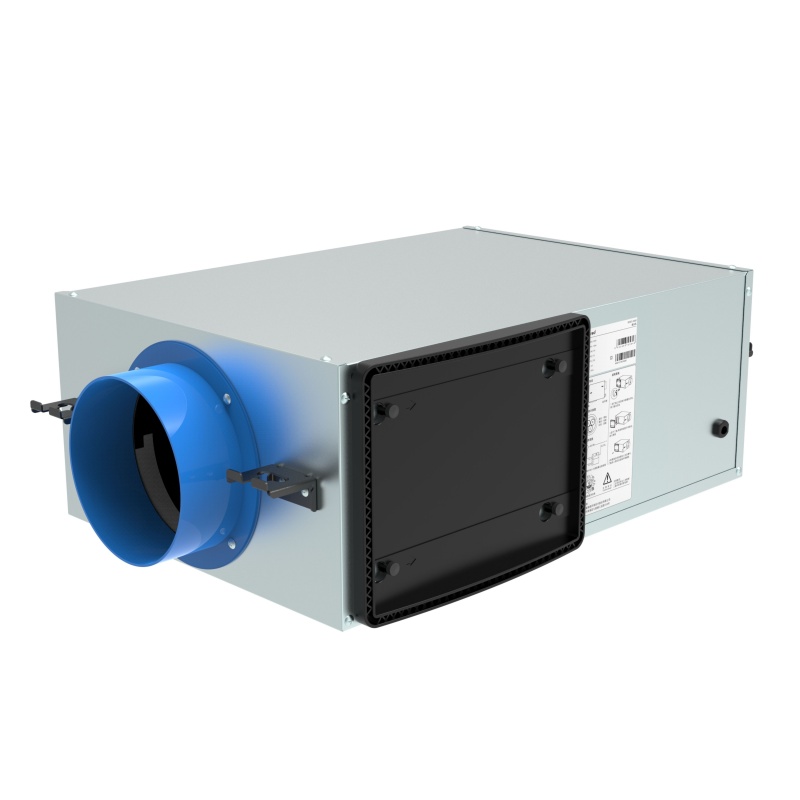

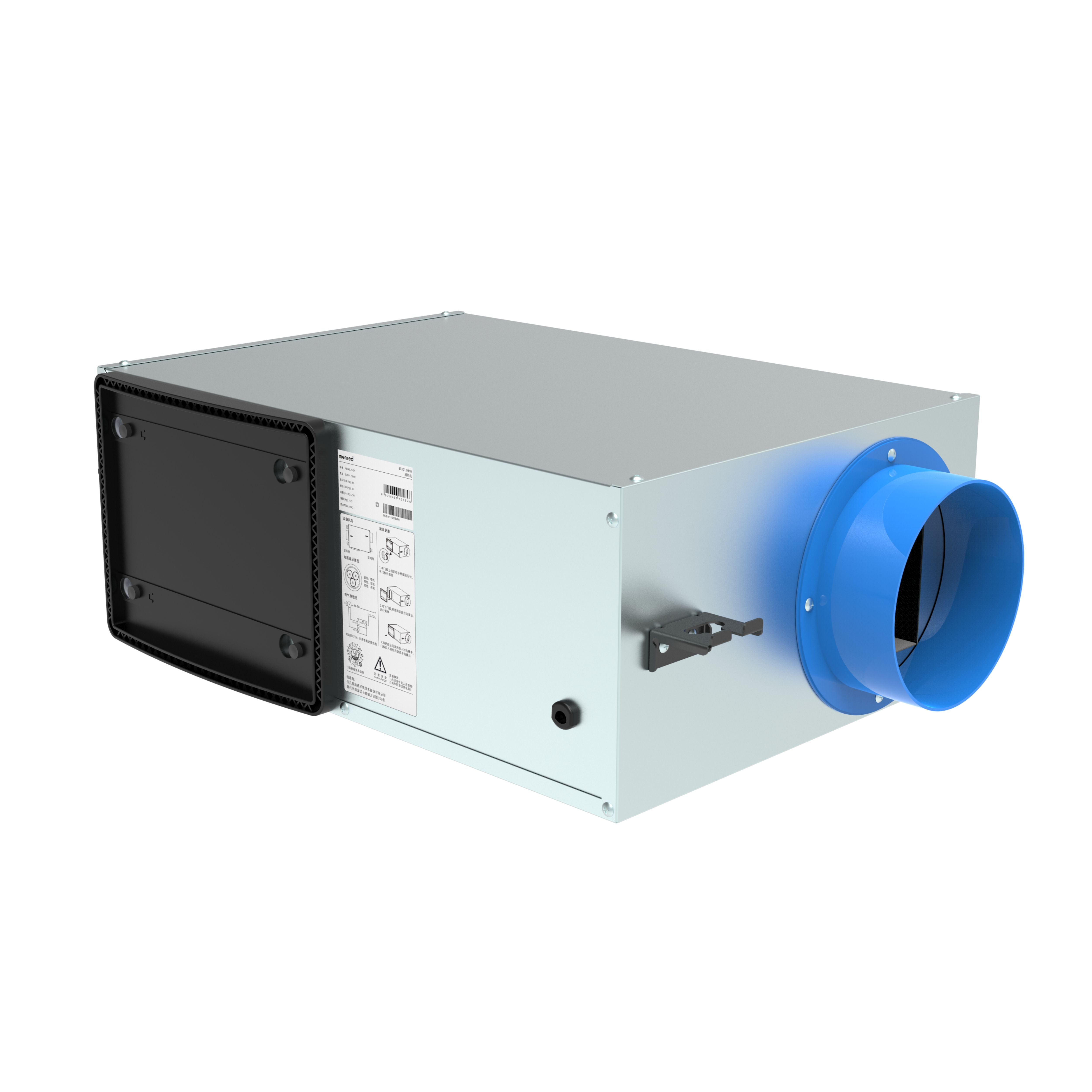

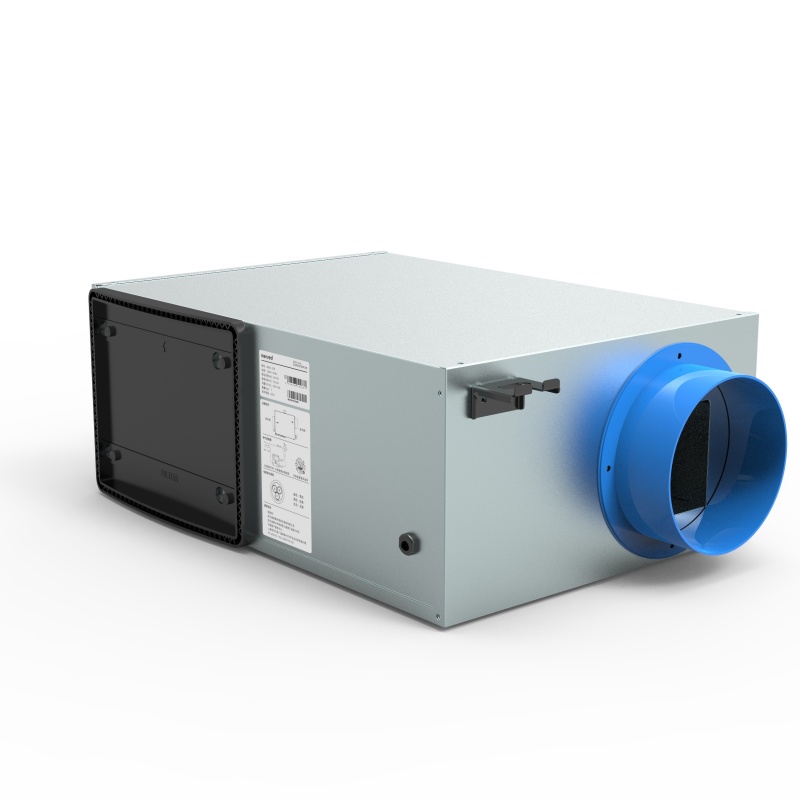

The MENRED NEW5.350A is a ceiling-mounted single-flow fresh air ventilator designed to deliver continuous filtered outdoor air into residential spaces. With a rated airflow of 350m³/h, HEPA filtration and a power-saving DC fan, it helps improve indoor air circulation while reducing airborne particles from incoming fresh air. Featuring low-noise operation at 37.8dB(A), a lightweight one-piece EPS structure and optional 2-speed control, the NEW5.350A provides a simple, efficient and space-saving solution for everyday fresh air ventilation.
