| Brand Name | MENRED |
| Model Number | G7 |
| Type | Wall-Mounted Full Heat Recovery Ventilator |
| Power Supply | 220–240V~ 50/60Hz |
| Rated Airflow | 350m³/h |
| Motor/Fan | EC Fan |
| Product Dimensions | 940 × 630 × 405mm |
High-Efficiency Heat Recovery
Delivers 73% heating efficiency and 65.5% cooling efficiency.
G4 + HEPA Filtration
Uses Toray filter media to capture PM2.5, dust and fine airborne particles.
98% PM2.5 Filtration
Provides up to 98% PM2.5 filtration efficiency for cleaner incoming air.
Built-In Air Quality Sensor
Monitors indoor air conditions to support intelligent ventilation control.
Energy-Efficient EC Fan
Provides stable airflow with a rated power of 130W.
350m³/h Rated Airflow
Delivers up to 450m³/h maximum airflow for spaces up to approximately 200m².
Ductwork Compatibility
Provides 80Pa supply and 50Pa exhaust static pressure for centralized air distribution.
Wall-Mounted Design
Provides accessible installation with a touch-screen control interface.
Improved Year-Round Comfort
Heat recovery helps maintain a more stable indoor temperature throughout the year.
Cleaner Indoor Air
Dual-stage filtration helps prevent outdoor particles from entering occupied spaces.
Healthier Fresh Air Supply
High PM2.5 filtration supports better indoor air quality.
Smarter Air Management
Air quality monitoring helps ventilation respond to changing indoor conditions.
Reduced Energy Consumption
The efficient EC fan supports continuous ventilation with lower power use.
Reliable Whole-House Ventilation
Continuously supplies fresh air while removing stale indoor air from multiple rooms.
Flexible Air Distribution
Static pressure performance maintains effective airflow across different duct layouts.
Easier Operation and Maintenance
Wall-mounted installation and touch-screen control improve accessibility and daily use.
| Specification | Details |
|---|---|
| Maximum Airflow | 450m³/h |
| Maximum / Rated Power | 220 / 130W |
| Supply Static Pressure | 80Pa |
| Exhaust Static Pressure | 50Pa |
| Heating Efficiency | 73% |
| Cooling Efficiency | 65.5% |
| Fresh Air Volume | 334m³/h |
| Fresh Air Ratio | 98.2% |
| Filter | G4 + HEPA |
| Filter Media | Toray |
| PM2.5 Filtration | 98% |
| Noise | 39dB(A) |
| Fresh Air Energy Consumption | 0.37W/(m³/h) |
| Built-In Sensor | Air Quality Sensor |
| Applicable Area | Up to Approx. 200m² |
| Operating Temperature | -15°C to +50°C |
| Ductwork Connection | Available |
| Weight | 57kg |
Access documentation, including installation guides, owner manuals, specification sheets, and more, to help you get the most out of your product.
Access Product Documentation

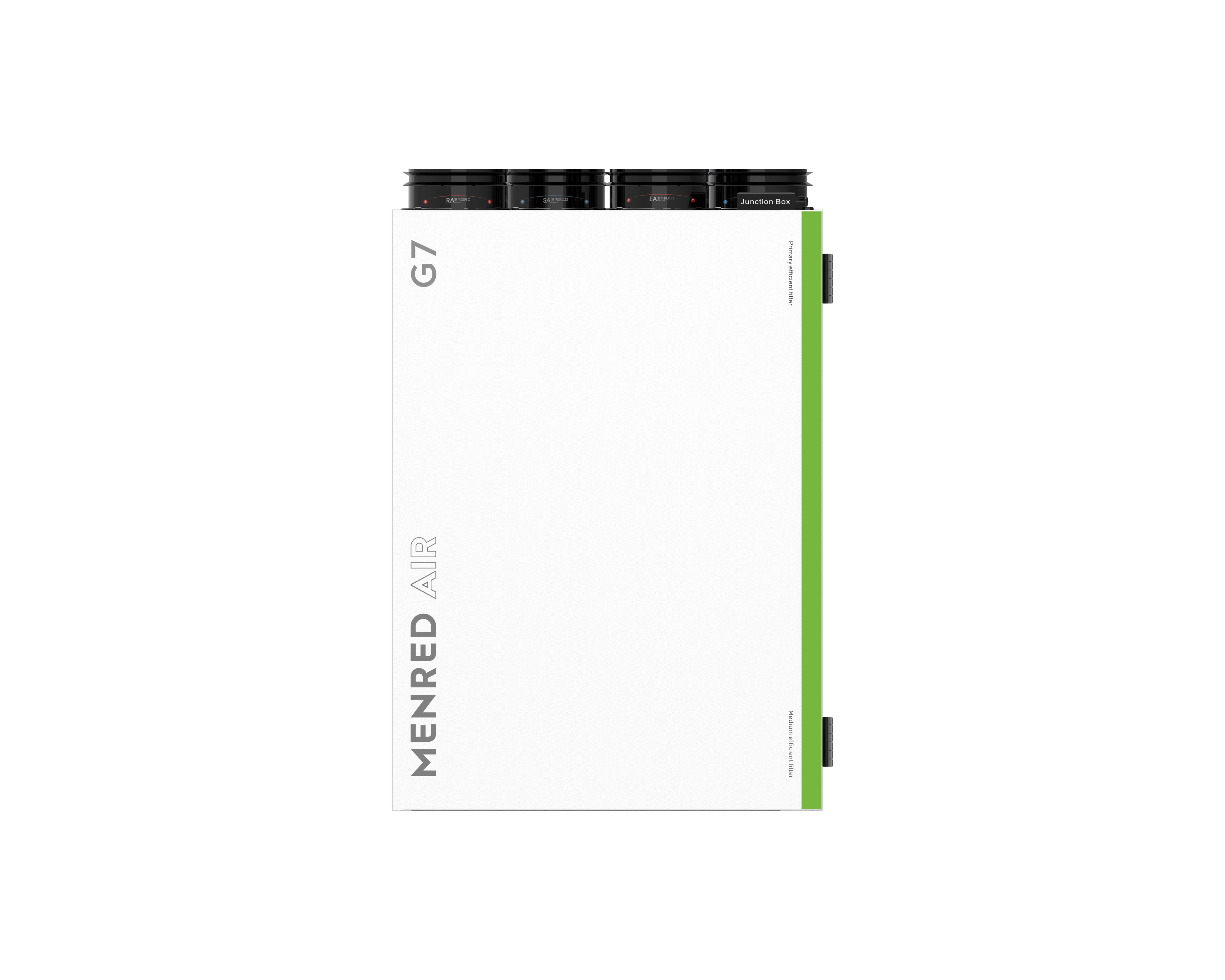

The MENRED G7 is a wall-mounted full heat recovery ventilator designed for residential spaces up to approximately 200m². Featuring 350m³/h rated airflow, Toray G4 + HEPA filtration and a built-in air quality sensor, it continuously supplies filtered fresh air while removing stale indoor air. With up to 73% heating efficiency, an energy-efficient EC fan and centralized ductwork compatibility, the G7 provides intelligent and reliable whole-house ventilation throughout the year.
