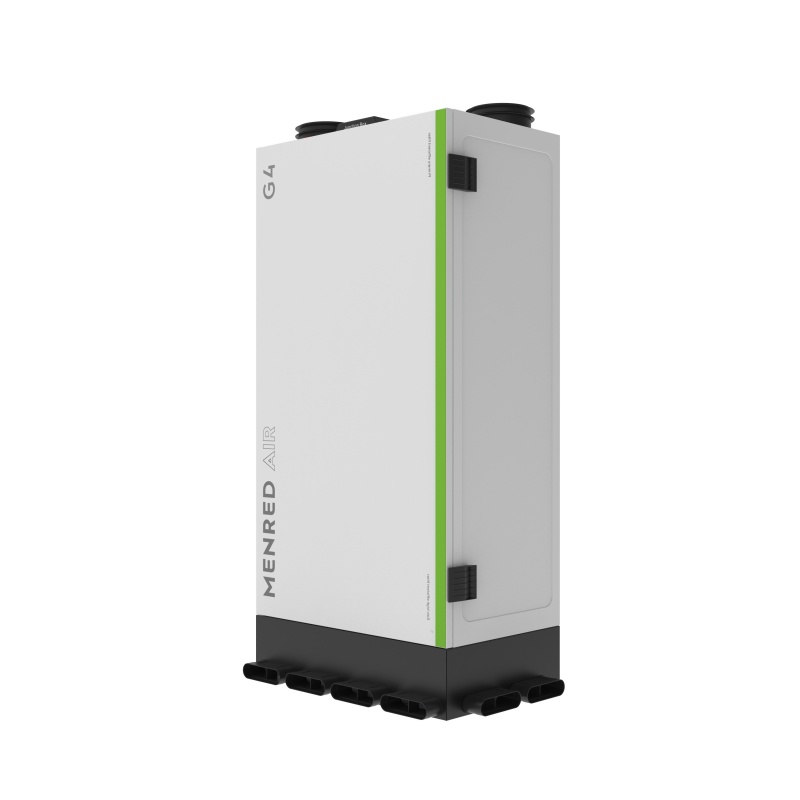

MENRED G4 Floor Standing ERV Fresh Air System 350m³/h ebmpapst DC Fan G4+HEPA Heat Recovery Ventilator with Built-in Air Quality Sensor

· Different Names of Product: Floor Mounted ERV, Vertical Standing Heat Recovery Ventilator, Ground-placed HRV Fresh Air System, Cabinet-type Energy Recovery Ventilation Unit, Whole House Floor Fresh Air Exchanger

· Main Application: Indoor air renewal for villas, large apartments, finished houses, homestays and offices; no ceiling breaking required, exhaust indoor stale air and deliver fully purified outdoor fresh air, recycle heat energy to cut air conditioning power cost, filter PM2.5, formaldehyde and excess CO₂ to optimize indoor air quality.

· Core Specification: Model G4, Rated airflow 350m³/h, Max airflow 480m³/h, applicable area up to 200㎡, 220V~50Hz power supply, Germany ebmpapst DC fan, built-in air quality sensors, Japan Toray G4+HEPA dual filtration with 99.2% PM2.5 efficiency, heating recovery efficiency71% / cooling recovery efficiency61%, fresh air ratio99%, running noise37dB(A), net weight65Kgs, dimension1360×630×400mm, optional touch screen controller and full ductwork, support Tuya APP WIFI remote control.

MENRED G4 floor-mounted vertical ERV fresh air system is a cabinet-style energy recovery ventilation unit specially developed for finished houses, old house renovation and mid-to-high-end residential projects that cannot carry out ceiling concealed construction. Adopting independent vertical floor standing layout, it eliminates the need for ceiling disassembly and embedded pipeline construction, greatly shortening the renovation construction cycle and perfectly solving the fresh air upgrading demand of completed decoration spaces.

Equipped with original Germany ebmpapst DC fan as the core air supply component, the unit runs stably with ultra-low rated power of only 130W, controlling running noise at merely 37dB(A) to avoid noise interference to family daily rest and office work. The supply fan static pressure reaches 100Pa and exhaust static pressure is 50Pa, which supports long-distance multi-room duct layout to realize uniform fresh air supply for each separated room. Built-in high-precision integrated air quality sensors can real-time monitor indoor PM2.5, CO₂, temperature and humidity data, automatically adjust fan speed according to air pollution level to realize unattended intelligent on-demand ventilation.

This floor ventilator adopts imported Japan Toray filter material to build G4 primary filter + HEPA high-efficiency composite purification system, achieving 99.2% ultra-high PM2.5 interception efficiency to block outdoor haze, pollen, fine dust and floating allergens, while efficiently adsorb formaldehyde, benzene and other volatile harmful substances left after interior decoration. The built-in high-efficiency total heat exchanger fully recycles temperature and humidity energy contained in exhausted indoor waste air, reaching 71% heating heat recovery efficiency and 61% cooling recovery efficiency, which effectively reduces extra energy loss of air conditioning and heating equipment caused by fresh air temperature difference, significantly cutting users’ long-term household operation electricity expenditure.

Powered by standard 220V~50Hz power supply, G4 owns rated airflow of 350m³/h and maximum airflow up to 480m³/h, matching applicable indoor area up to 200 square meters, widely suitable for large duplex apartments, villas, finished homestays and independent office ventilation renovation projects. Its fresh air ratio hits 99%, continuously input high-proportion pure fresh outdoor oxygen into closed indoor space, thoroughly solving indoor hypoxia, stuffiness, peculiar smell and excessive carbon dioxide concentration caused by long-time window closing.

The vertical cabinet body dimension is 1360×630×400mm with net weight of 65Kgs, stable vertical base structure ensures safe floor placement without wall fixing operation. Customers can optionally configure intelligent touch screen controller and complete matched ductwork system, supporting Tuya APP WIFI remote monitoring, parameter setting and timing operation for remote intelligent control. All MENRED G4 series pass strict multi-process factory aging inspection and international CE, UKCA safety certifications. Stable monthly production capacity supports OEM customized logo and packaging service for global fresh air distributors, interior decoration companies and homestay engineering contractors.

· Finished Residential Buildings: Decorated villas, large finished apartments and renovated old houses, no ceiling breaking required, realize whole-house fresh air purification without damaging original decoration.

· Light Hospitality Spaces: Boutique homestays, vacation suites and small inns, vertical floor layout matches various interior decoration styles, keep guest rooms dry and fresh.

· Independent Office & Study: Private offices, large study rooms and studios, solve indoor stuffiness and high CO₂ concentration from long-time closed windows to improve working efficiency.

· Renovation Engineering Projects: Special vertical fresh air equipment for decoration companies, the optimal solution for ventilation upgrading of fully decorated houses that cannot do ceiling concealed installation.

· Floor Standing No-ceiling Design: Vertical cabinet layout avoids ceiling disassembly and pre-buried pipeline construction, ideal for finished house ventilation renovation.

· Germany ebmpapst Original DC Fan: Low power consumption 130W rated power, ultra-quiet operation at 37dB(A), stable performance and long service life with low maintenance cost.

· Built-in Integrated Air Quality Sensors: Real-time full-index air monitoring, automatic fan speed adjustment for energy-saving intelligent ventilation.

· Japan Toray Dual-stage Ultra-high Efficiency Filtration: G4+HEPA composite filter with 99.2% PM2.5 interception efficiency, thoroughly purify incoming fresh air and block all kinds of outdoor pollutants.

· Energy-saving High-efficiency Heat Recovery Core: 71% heating & 61% cooling recovery efficiency, recycle exhaust air energy to reduce annual air conditioning electricity cost greatly.

· 99% Ultra-high Fresh Air Ratio: Sufficient pure outdoor fresh oxygen input, effectively relieve indoor hypoxia, stuffiness and excessive CO₂ caused by long-term window closing.

· Strong Static Pressure Multi-room Duct Support: Supply static pressure up to 100Pa, support full duct layout to deliver fresh air evenly to all rooms of the house.

· Tuya WIFI Intelligent Remote Control: Optional touch screen controller and mobile APP remote operation, realize unattended automatic ventilation.

· Wide Working Temperature Adaptability: Stable operation under -15℃~50℃, adapt to cold northern winter and hot southern summer climate.

· Complete International Certifications & Customization Support: CE/UKCA certified, stable monthly supply capacity accepts OEM logo and packaging customization for global bulk purchasers.
