Home > Products > Central Vacuum System > Retractable Hose System
| Basic Information | Details |
|---|---|
| Brand Name | MENRED |
| Model Numbers | F8232 / F8233 / F8234 |
| Product Type | Retractable Hose Pipe Fittings |
| Product Category | Central Vacuum System Accessories |
| Color | White |
| Installation Method | Concealed Wall or Ceiling Installation |
| Compatible System | MENRED Retractable Central Vacuum System |
Three fitting models support different pipe direction changes and installation layouts.
The curved internal structure helps the retractable hose travel smoothly through concealed pipework.
Gradual bends reduce resistance when pulling out or retracting the vacuum hose.
The fittings can be installed inside walls, ceilings and service spaces as part of the vacuum piping network.
Designed for pipework used with the MENRED D291 retractable vacuum hose.
Different fittings can be combined according to the building layout and hose storage route.
Multiple angle options help installers adapt the pipework to different building structures.
The curved fittings help prevent excessive friction while the hose moves through the piping.
Gradual direction changes support stable vacuum-assisted hose retraction.
Concealed installation keeps the pipework and fittings completely out of sight.
Dedicated fittings improve coordination between the D291 hose and concealed piping.
Installers can create customized hose routes for villas, apartments and residential projects.

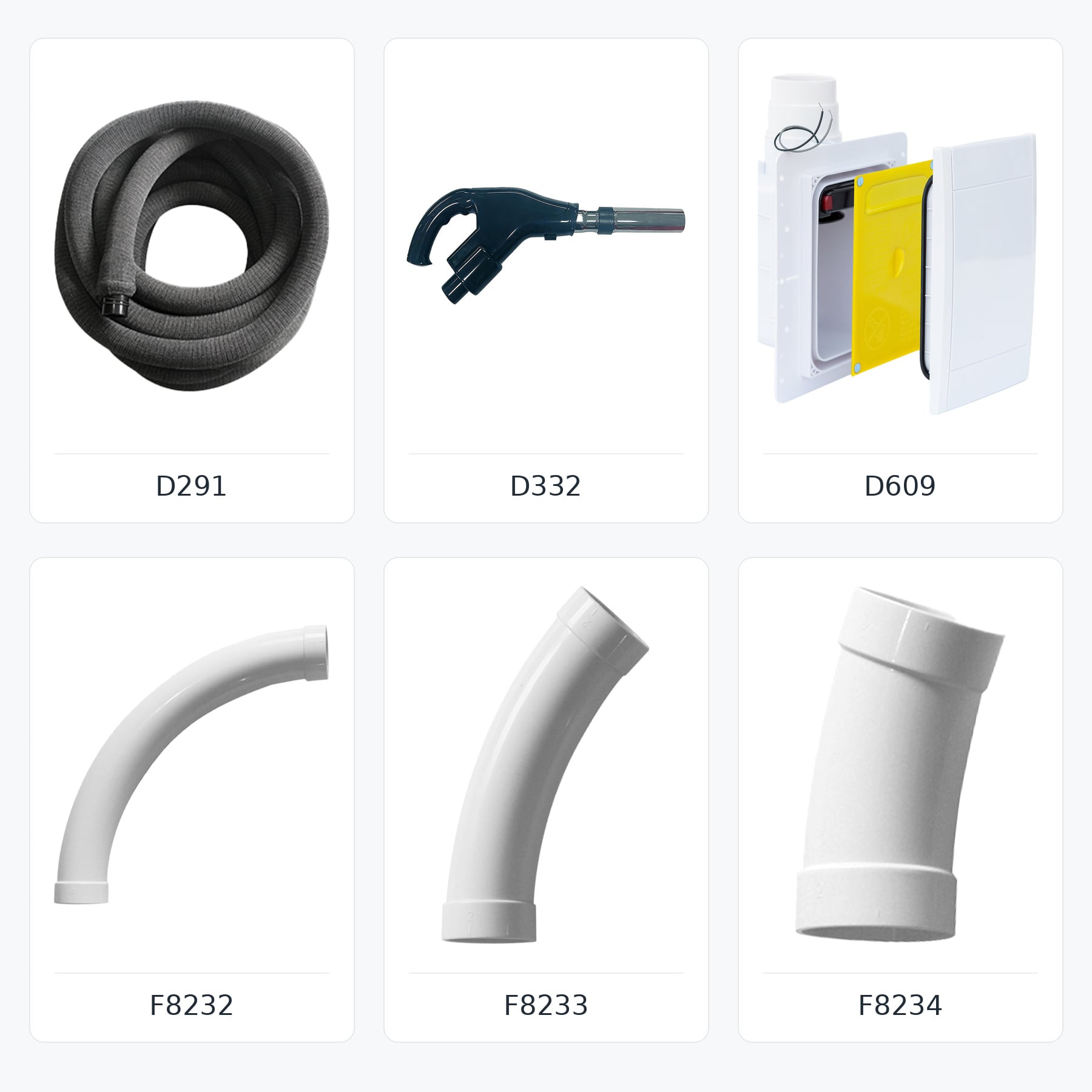

| Specification | F8232 | F8233 | F8234 |
|---|---|---|---|
| Fitting Type | Long-Radius Elbow | Angled Elbow | Small-Angle Elbow |
| Directional Angle | 90° | 45° | 22.5° |
| Primary Function | Major Direction Change | Gradual Direction Change | Minor Route Adjustment |
| Internal Profile | Smooth Curved Passage | Smooth Curved Passage | Smooth Curved Passage |
| Compatible Hose | D291 | D291 | D291 |
| Installation Position | Wall / Ceiling Pipework | Wall / Ceiling Pipework | Wall / Ceiling Pipework |
| Application | Retractable Hose Routing | Retractable Hose Routing | Retractable Hose Routing |
